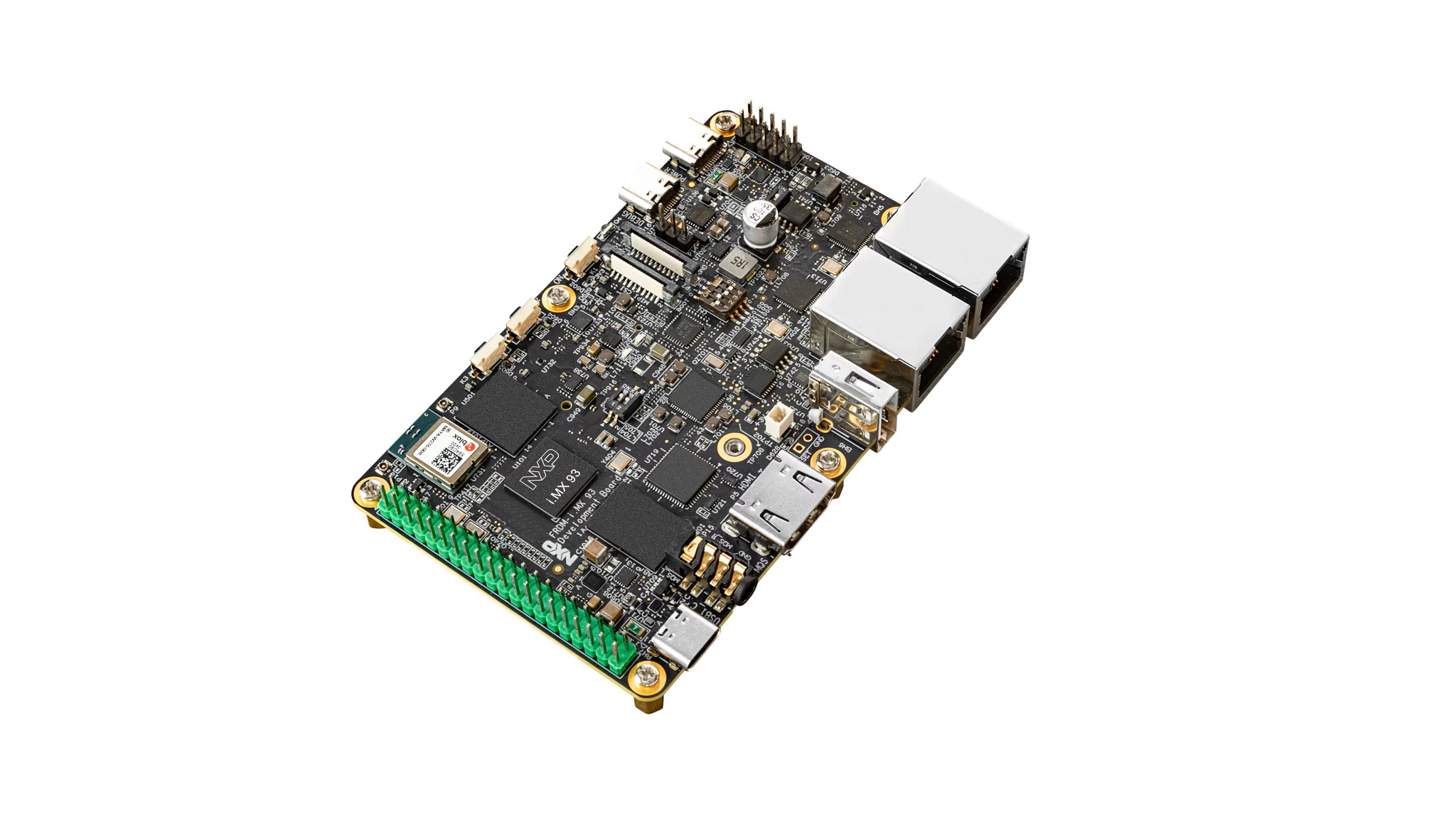

NXP i.MX 93 FRDM SBC
The FRDM i.MX 93 is a low-cost development board for rapid prototyping. It includes built-in Wi-Fi and Bluetooth and requires extremely little power, making it ideal for modern industrial and IoT applications.
Technical Specifications
| Component | Details |
|---|---|
| CPU | Dual-core Arm Cortex-A55 (1.7 GHz) |
| MCU | Single Arm Cortex-M33 (250 MHz) |
| NPU | Arm Ethos U-65 microNPU |
| AI Performance | Up to 0.5 TOPS (INT8) |
| Memory | 2GB 16-bit LPDDR4X |
| Storage | 32GB eMMC + microSD card slot + M.2 Key M PCIe NVMe SSD |
| Connectivity | Built-in NXP IW612 wireless module with Wi-Fi and Bluetooth |
Getting Started
Get up and running with the Avocado Linux SDK in minutes.
Prerequisites
- A Mac (macOS 10.12+) or Linux (Ubuntu 22.04+, Fedora 39+) development machine
- Docker installed
- 10GB+ available disk space
Provisioning your device
- Initialize your project
avocado init --target imx93-frdm avocado-imx93
cd avocado-imx93
- Install all components (SDK, extensions, and runtime dependencies):
avocado install -f
- Build all components
avocado build
- Provision a runtime
avocado provision -r dev
